6 Colors | 2 Patterns | 4 Sizes
Technical Specifications
| Nominal Size (in.) |
12 x 23
|
31 x 31 |
12" x 12" Geometric Mosaic
|

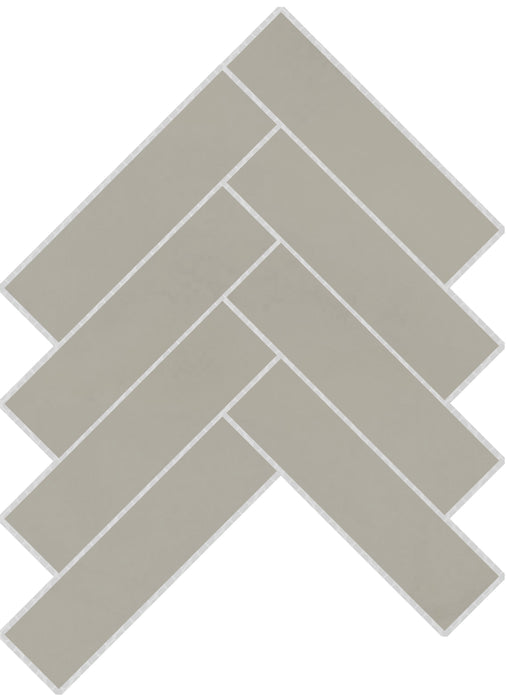

17" x 17" Herringbone Mosaic
|
| Edge Detail |
Rectified |
Rectified |
Cut |
Cut |
| Finish |
Matte |
Matte |
Matte |
Matte |
| Faces |
72 (36 - Ridge) |
18
|
TIP
|
TIP |
| Thickness (mm.)* |
9 |
9 |
TIP
|
TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method |
Results |
| Abrasion Resistance C1027 |
III |
| Breaking Strength C648 |
>350lbf |
| Chemical Resistance C650 |
Resistant |
| Water Absorption C373 |
<0.5%
|
| DCOF AcuTest WET |
>0.60 (Flat)
<0.42 (Ridge) |
| Scratch Hardness MOHS |
7 |
| Shade Variation |
V2 |
Download 3 Part CSI
Download and View Care and Maintenance

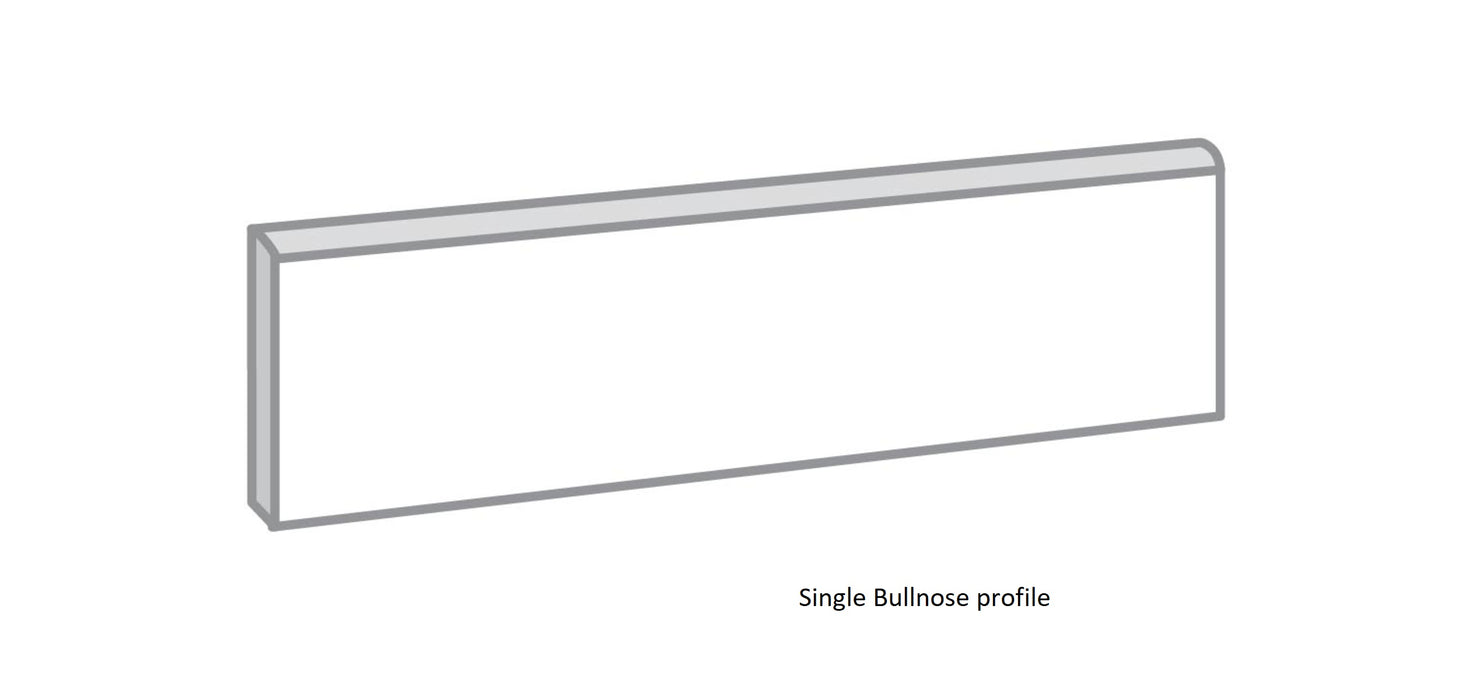

Sizes and Trim
Usage
| USAGE TYPES: |
Flat |
Ridge |
| COMMERCIAL FLOOR WET* |
YES
|
NO
|
| COMMERCIAL FLOOR DRY* |
YES
|
YES
|
| RESIDENTIAL FLOOR |
YES |
YES
|
| RESIDENTIAL AND COMMERCIAL WALL |
YES |
YES
|
| SHOWER WALL |
YES |
YES
|
| RESIDENTIAL SHOWER FLOOR |
YES |
YES
|
COMMERCIAL SHOWER FLOOR
|
YES
|
NO
|
| STEAM SHOWER |
YES |
YES
|
| KITCHEN COUNTER |
YES |
YES
|
| STOVE AREA |
YES |
YES
|
| FIREPLACE FACADE |
YES |
YES
|
| EXTERIOR WALL |
YES
|
YES
|
EXTERIOR FLOOR (NOT POOL)
|
YES
|
NO
|
POOL WATERLINE
|
YES
|
YES
|
UV STABLE
|
YES
|
YES
|
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
