REGALA™
GLAZED PORCELAIN
Description

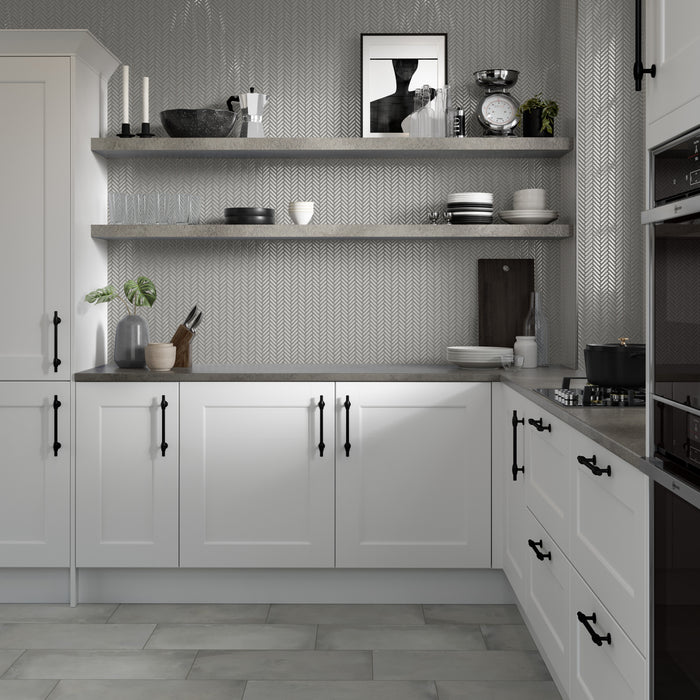

Let the love affair with herringbone continue, starring Regala™ mosaic tile. Options abound with this collection, enabling herringbone and offset patterns, along with a special mini version. The full offering pops with soft neutrals as well as color options in perennial favorites, blue and green.

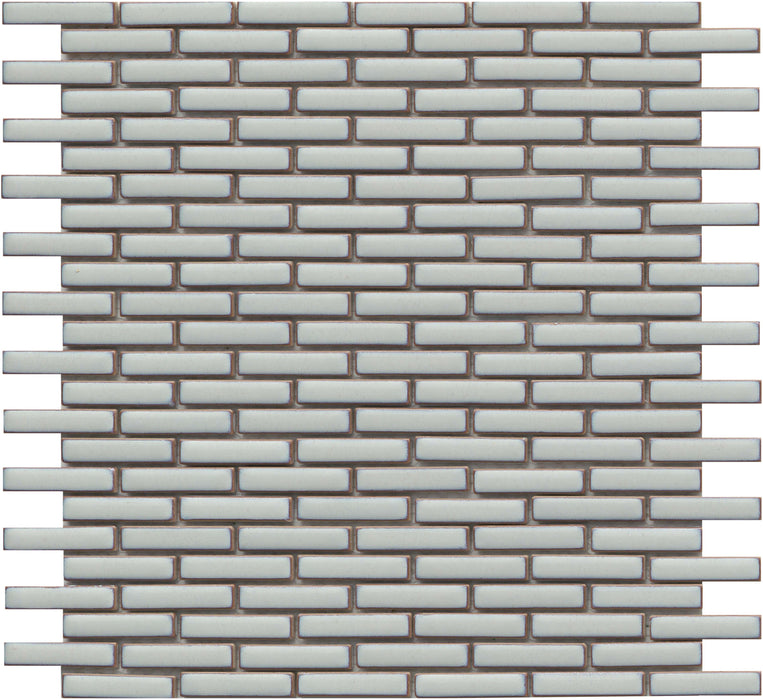

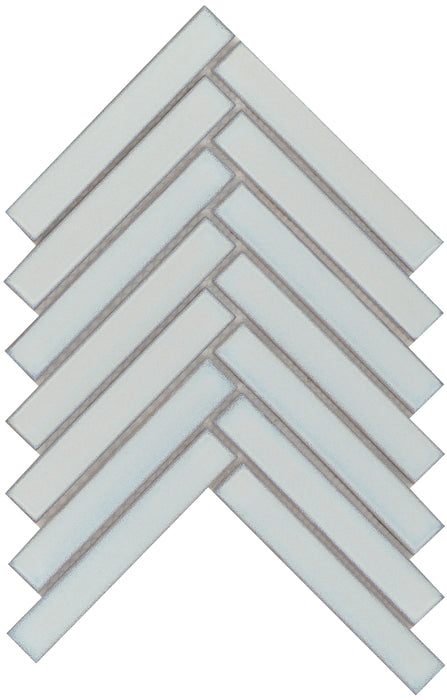

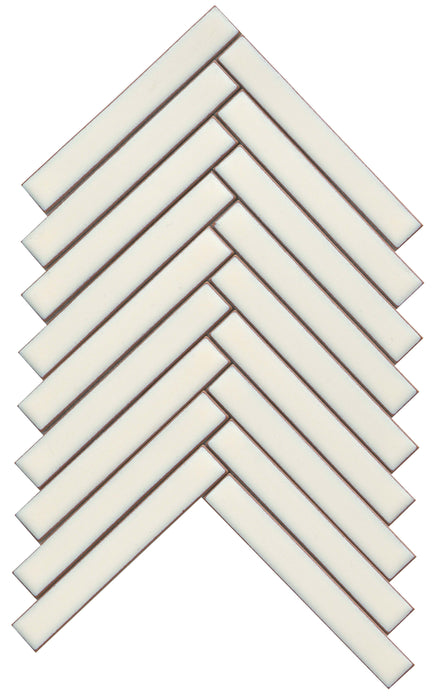

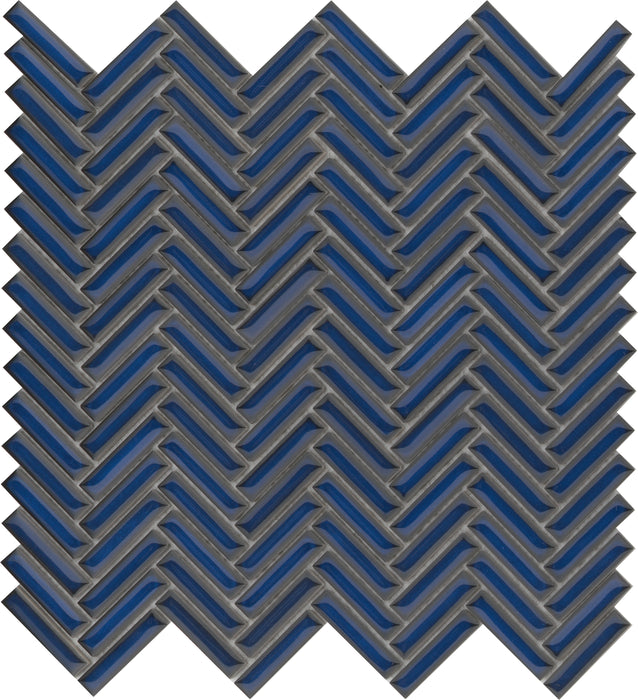

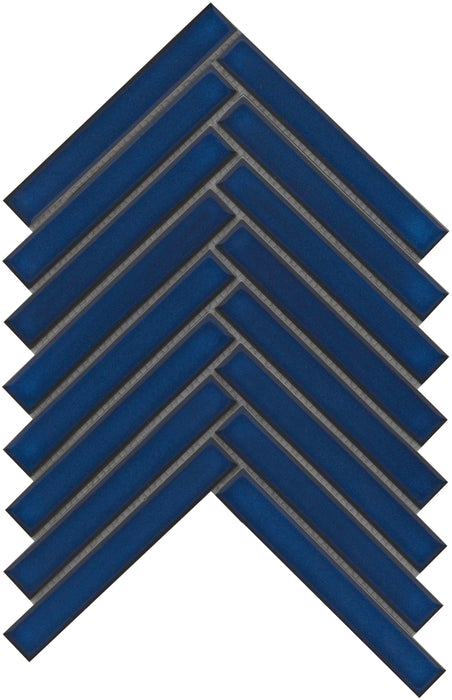

4 Colors | 4 Patterns | 4 Sizes
Technical Specifications

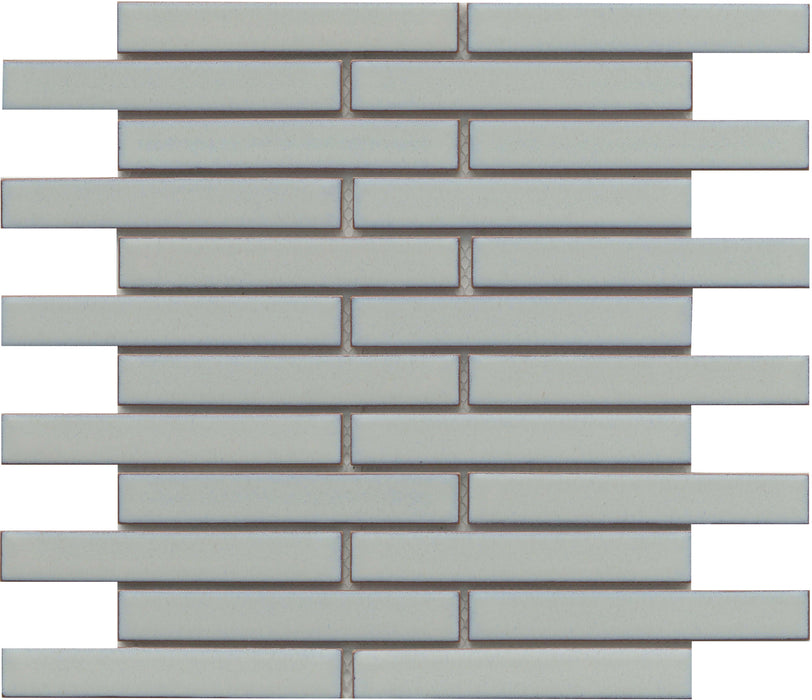

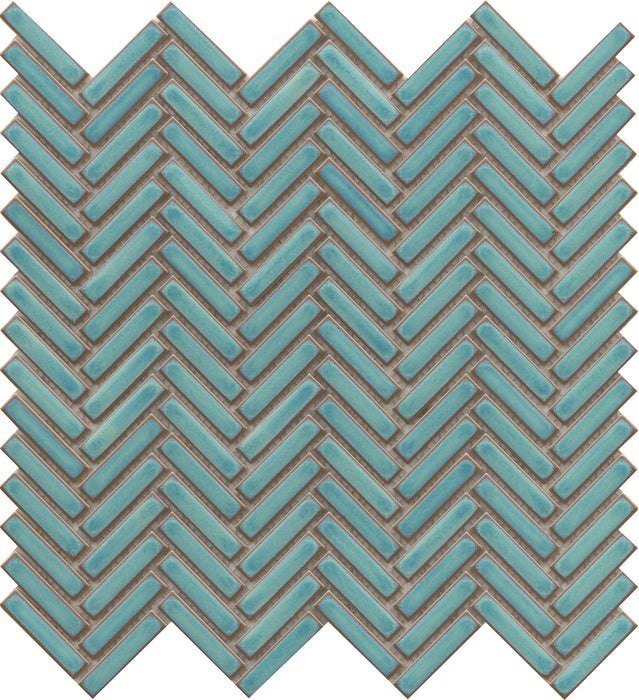

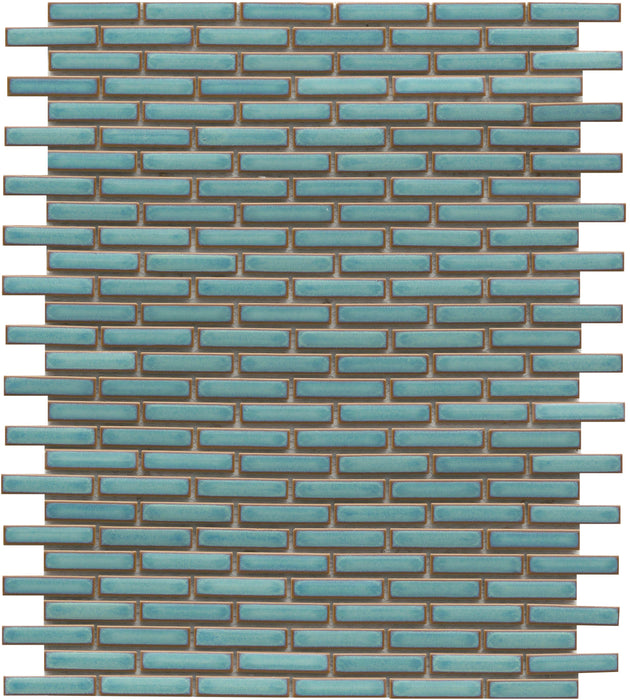

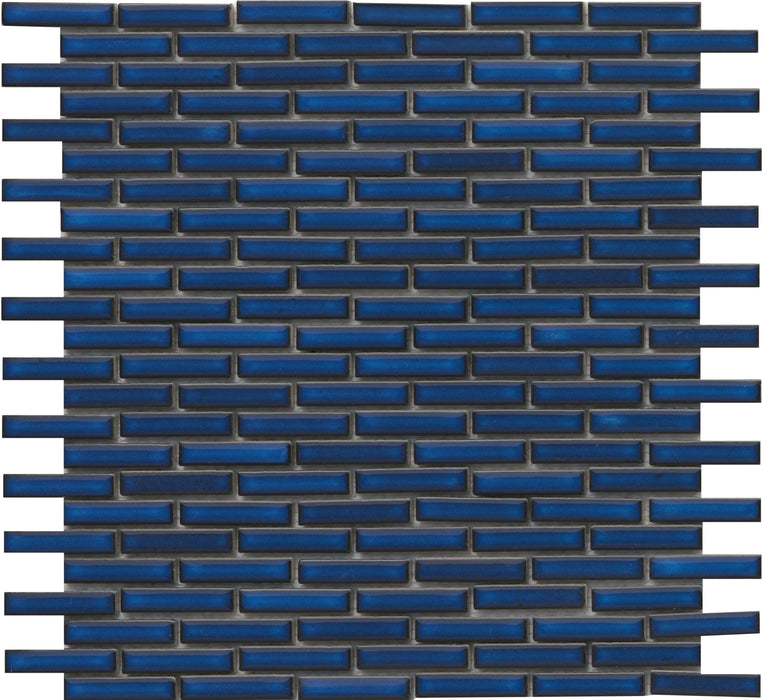

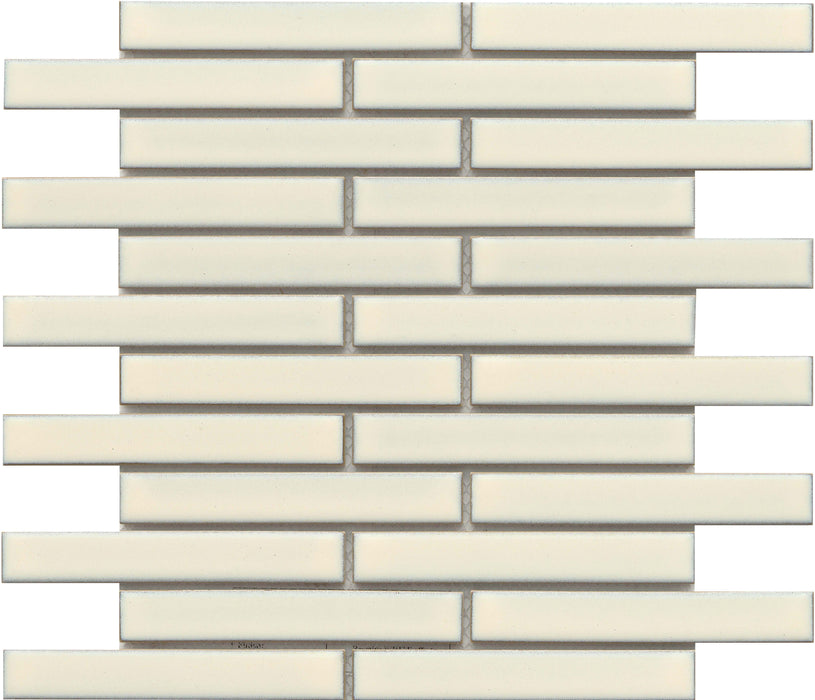

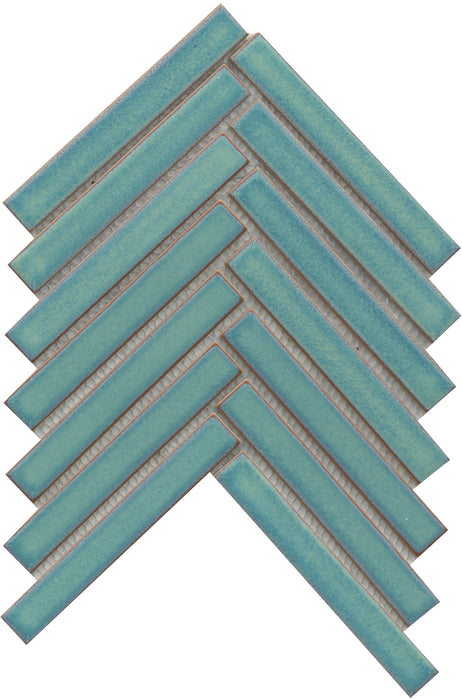

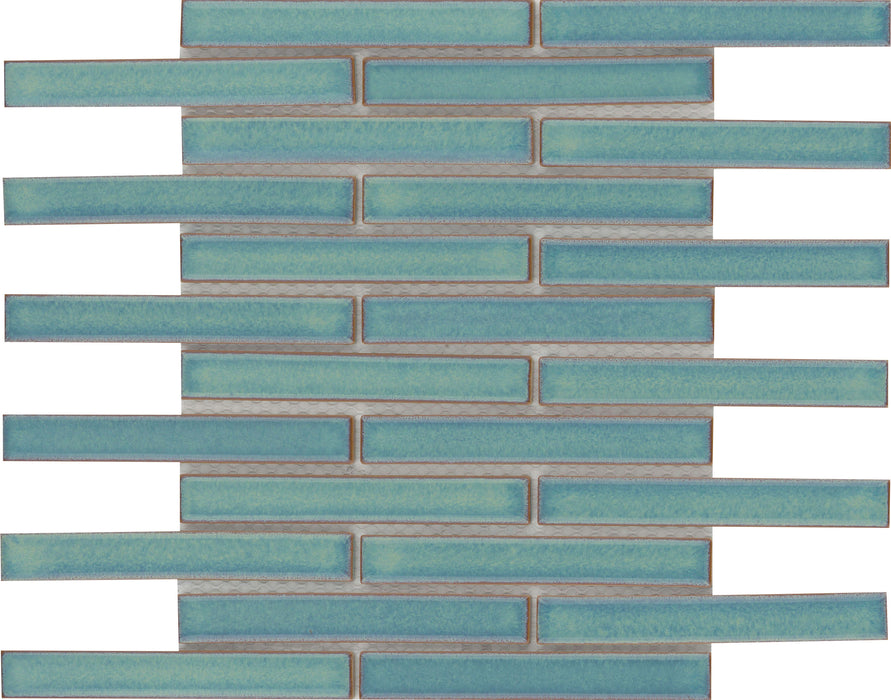

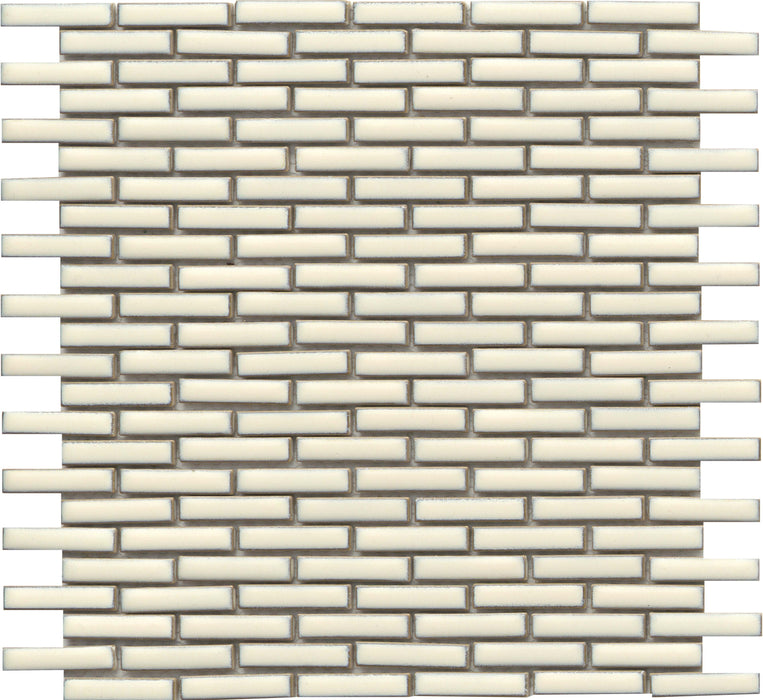

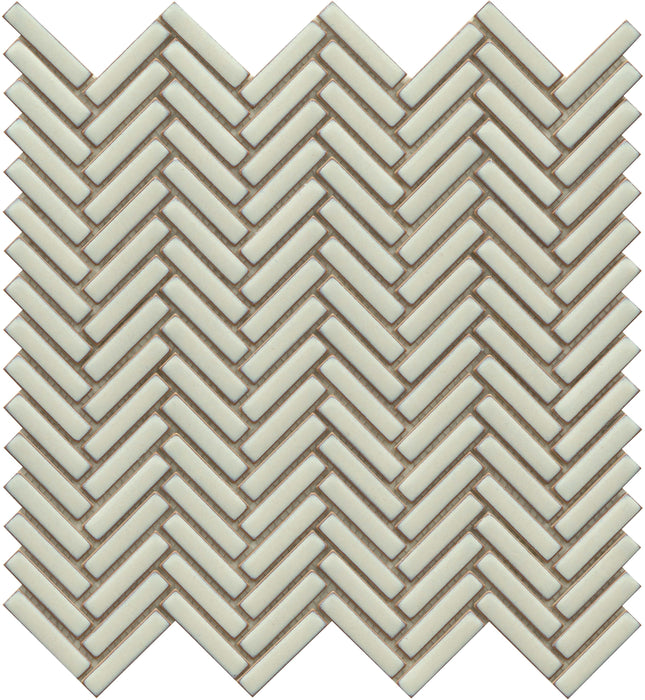

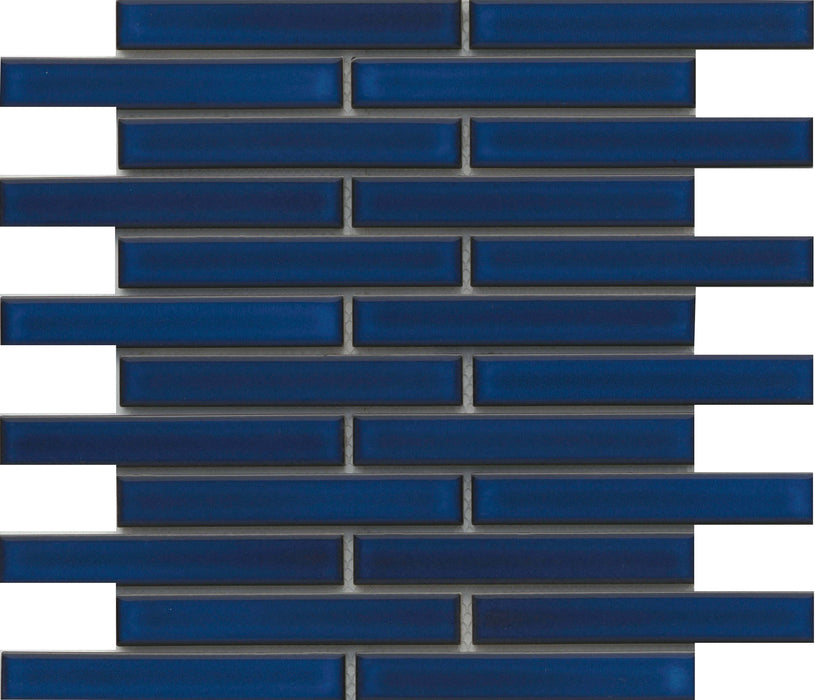

| Nominal Size (in.) | 8x10 Herringbone | 11x11 Mini Herringbone | 12x12 Offset | 12x12 Mini Offset |
| Pattern | Herringbone | Herringbone | Offset | Offset |
| Edge Detail | Pressed | Pressed | Pressed | Pressed |
| Finish | Glossy | Glossy | Glossy | Glossy |
| Thickness (in.)* | 5.5mm | 5.5mm | 5.5mm | 5.5mm |
| Lbs/PC | 1.98 | 1.87 | 1.98 | 2.43 |
| Grout Joint Recommendation (in.) | 1/8" | 1/8" | 1/8" | TIP* |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | N/A, Wall Only |
| Breaking Strength C648 | >125 |
| Chemical Resistance C650 | Resistant |
| Stain Resistance | Resistant |
| Water Absorption C373 | <0.5% |
| DCOF AcuTest WET | N/A, Wall Only |
| Rectified Micro Bubble |
No |
| Scratch Hardness MOHS | 3 |
| Shade Variation | V2 |
| VOC | VOC Free |
Download and View Care and Maintenance
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | No |
| COMMERCIAL FLOOR DRY* | No |
| RESIDENTIAL FLOOR | No |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR |
No |
| COMMERCIAL SHOWER FLOOR |
No |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER |
No |

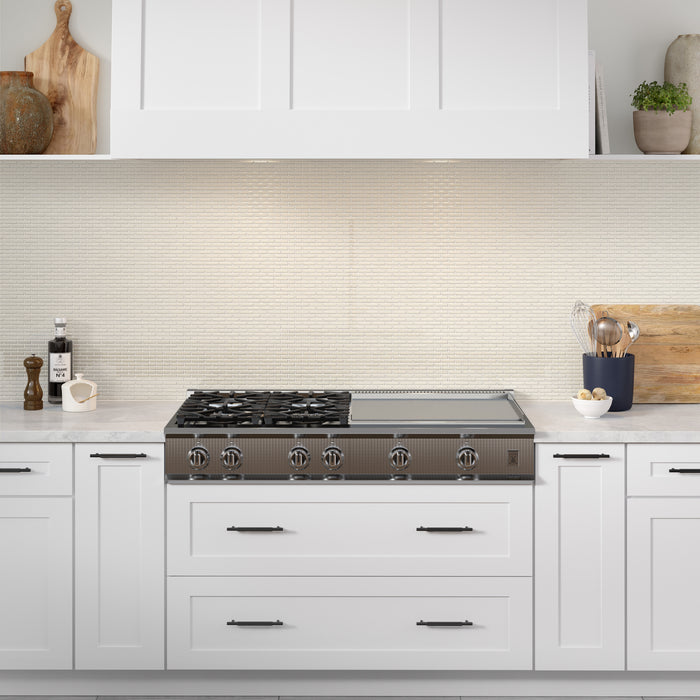

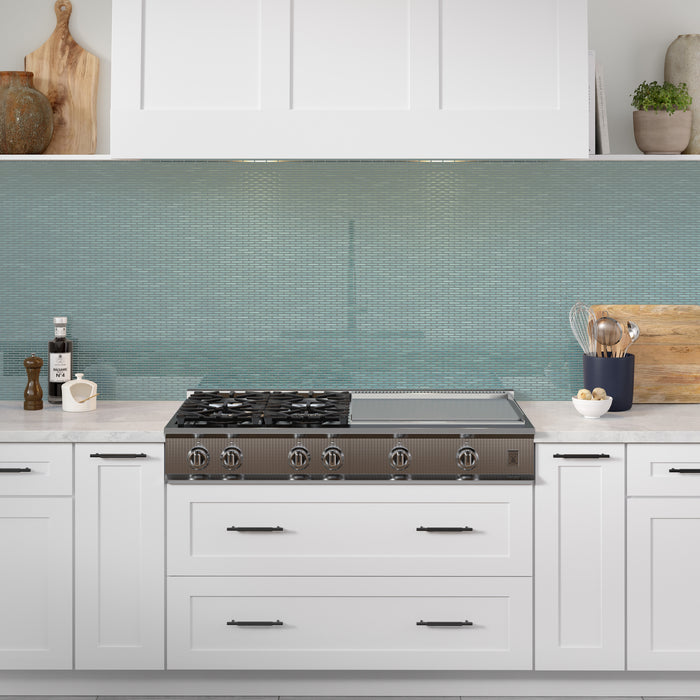

| STOVE AREA |
Yes |
| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | Yes |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| UV STABLE | Yes |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
